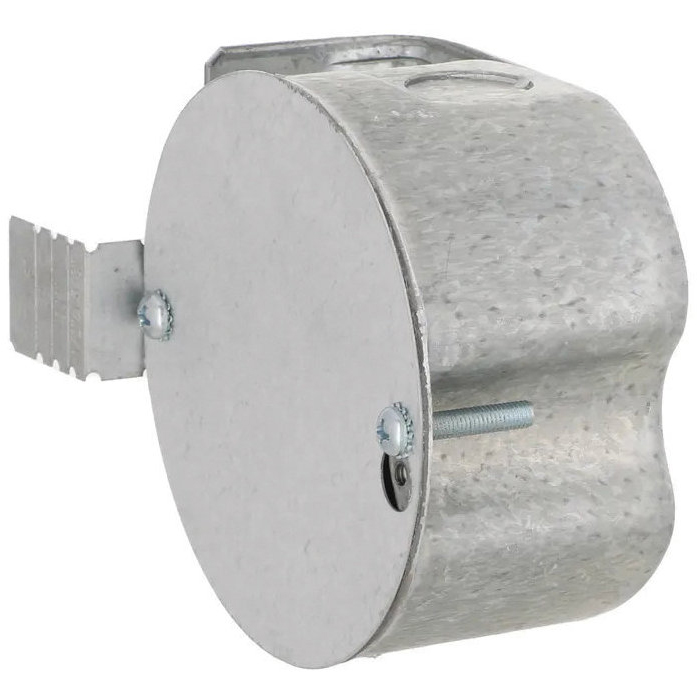

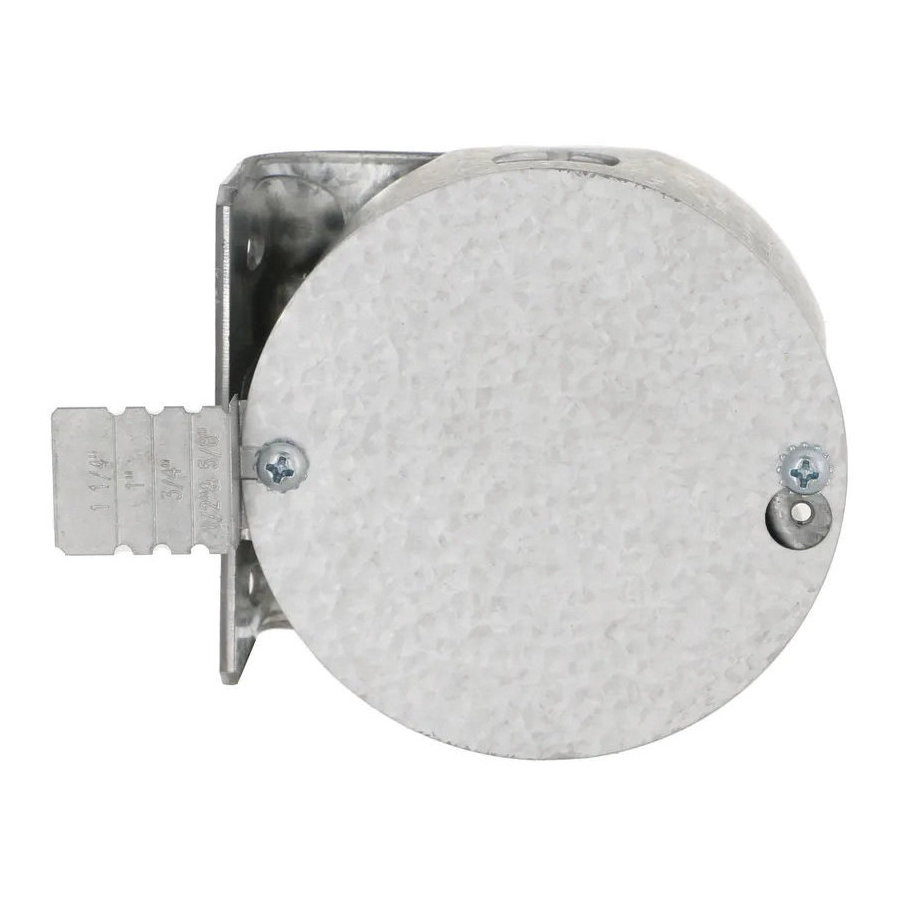

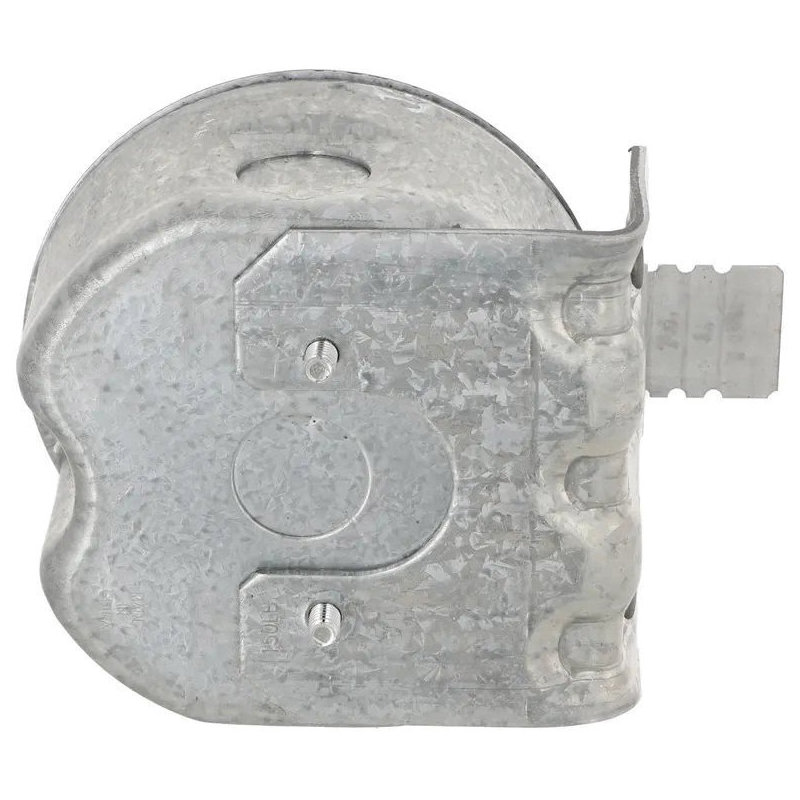

RACO 294
Ceiling fan box, 4 in octagon, 1 bottom 1/2 in TKO knockout. 2-1/8 in depth, 22.3 cu-in. Used in new work and renovations. Features FA bracket for wood studs or joists, which allows box to be securely mounted flush. Ceiling fan rated, can be used in the installation of heavy light fixtures or ceiling fans. Recommended support load for ceiling fan is 70 lb, for fixtures is 150 lb. Includes non-metallic sheathed cable connector, mounting hardware, high-strength hardened screws and instructions. Acceptable for use in 2 hrs rated walls and ceilings. UL listed.
| Cable Entry | : | Clamp |
| Color | : | Silver |
| Cubic Capacity | : | 22.3 cu-in |
| Depth | : | 2-3/4 in |
| Height | : | 4-1/4 in |
| Includes | : | High-Strength Hardened Screws, Instructions, Mounting Hardware, Non-Metallic Sheathed Cable Connector |
| Material | : | Steel |
| Mounting Type | : | Bracket |
| Number of Gangs | : | 2 |
| Number of Knockouts | : | 3 |
| Shape | : | Round |
| Width | : | 4.13 in |
- No protruding ground screw or fan-mounting screws allows easy installation
- Metal protection plate eliminates debris or damage to wiring
- Setback tab allows for easy installation of different wall thickness
- Drawn with conduit KO
- Patent pending bracket design allows for new work and old work applications
- 1 in grade 5 #10 to 32 ceiling fan screw threaded into extruded hole for exceptional strength
- #8 - 32 tapped holes for ceiling fixture mounting
