      Gardner Bender GSW-117
      Gardner Bender

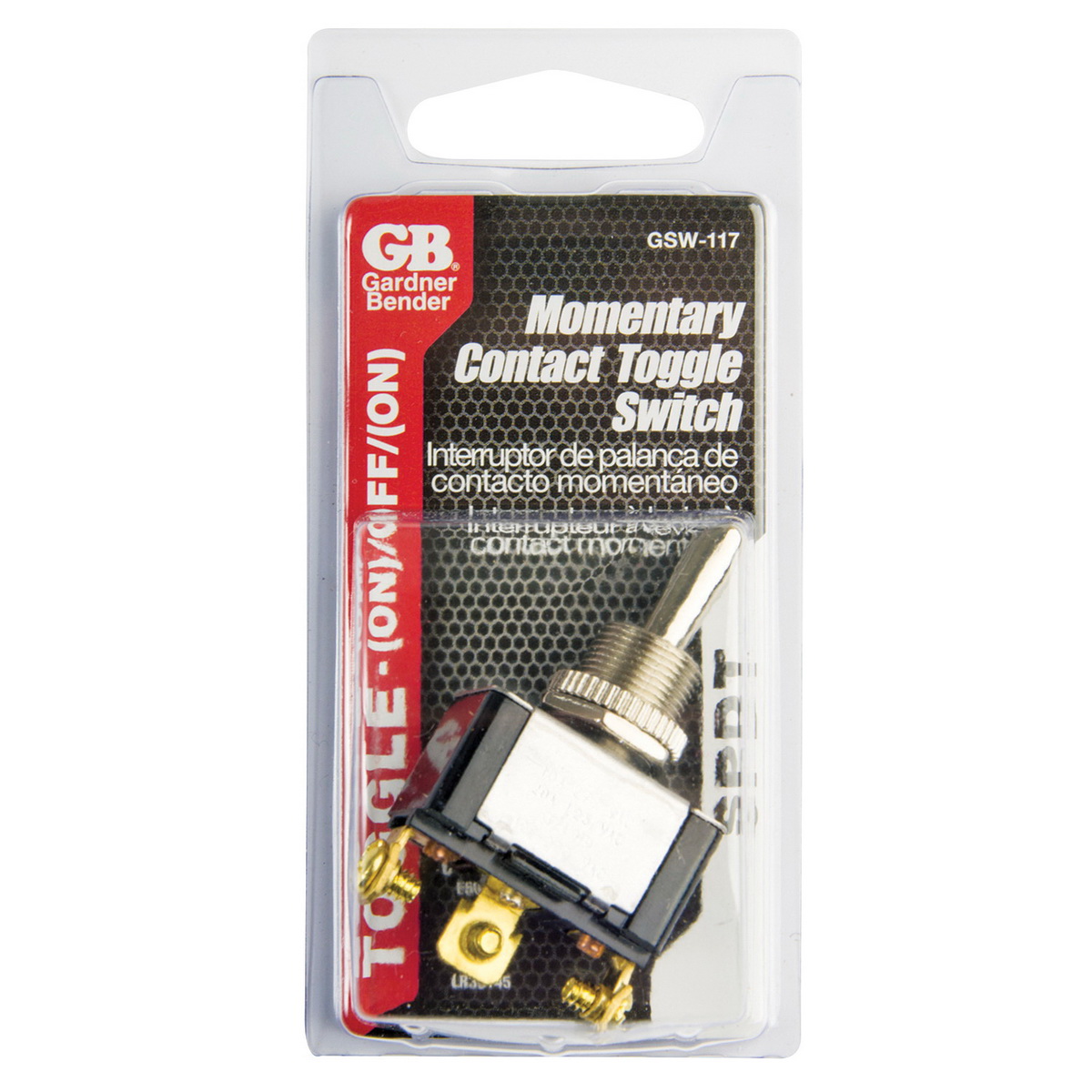

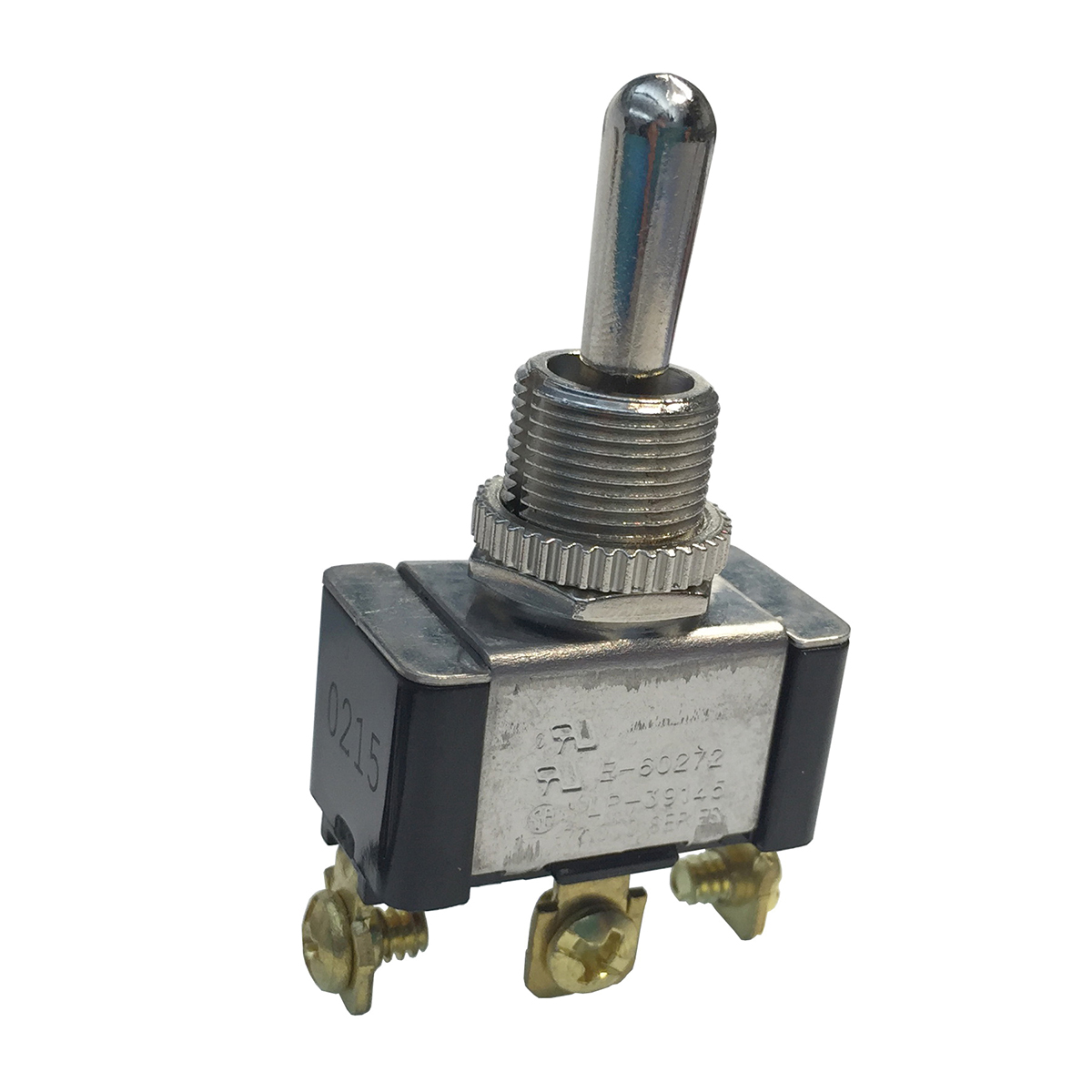

      Gardner Bender GSW-117 Heavy-Duty Toggle Switch, 10/20 A, 125/277 VAC, 500 VDC, 2 -Position, SPDT

      • Model Number: GSW-117
      • UPC: 032076021184
      • Store SKU: loading

      • Gardner Bender GSW-117 Heavy-Duty Toggle Switch, 10/20 A, 125/277 VAC, 500 VDC, 2 -Position, SPDT

      • loading

        Promo Price: loading

      • Quantity
        • Availability:
      • Add To Cart
        Add to Favorite List
        • Supplier SKU: loading
        • Web SKU: 102487980
      Gardner Bender GSW-117

      Gardner Bender has a versatile toggle switch family with multiple position configurations. Toggle switches feature flat terminals and are available in four different actuations: SPST, SPDT, DPST and DPDT. Flat terminal heavy-duty toggle switches meet the standards of today's automotive, marine and industrial applications and are great for electrical connections.

      Actuator Type :    Short Ball
      Contact Configuration :    SPDT
      Current Rating :    10/20 A
      Dielectric Strength :    1500 VAC/1 min
      Dimensions :    1.126 in L x 0.63 in W
      Number of Poles :    3
      Number of Positions :    2
      Resistance :    50 mOhm to 100 Mohm
      Stem Diameter :    15/32 in
      Stem Length :    0.469 in
      Switch Operation :    On-Off-On
      Temperature Rating :    75 deg C
      Terminal Type :    Flat, Wire Lead
      Voltage Rating :    125/277 VAC, 500 VDC
      • Perfect for industrial equipment or emergency lighting
      • 1/2 in-mounting hole required
      • 15/32-32 in standard nut size
