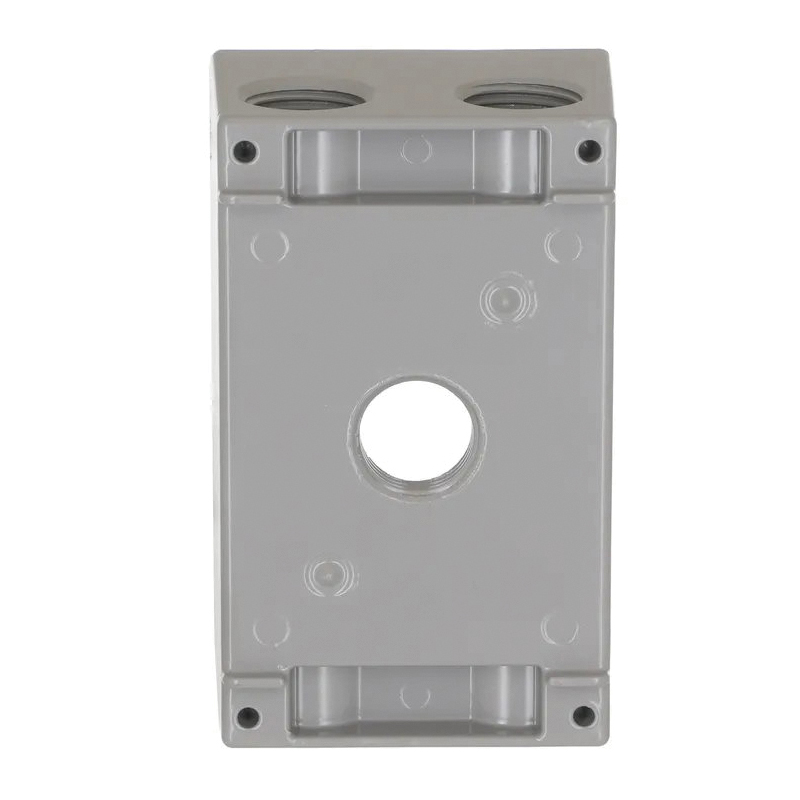

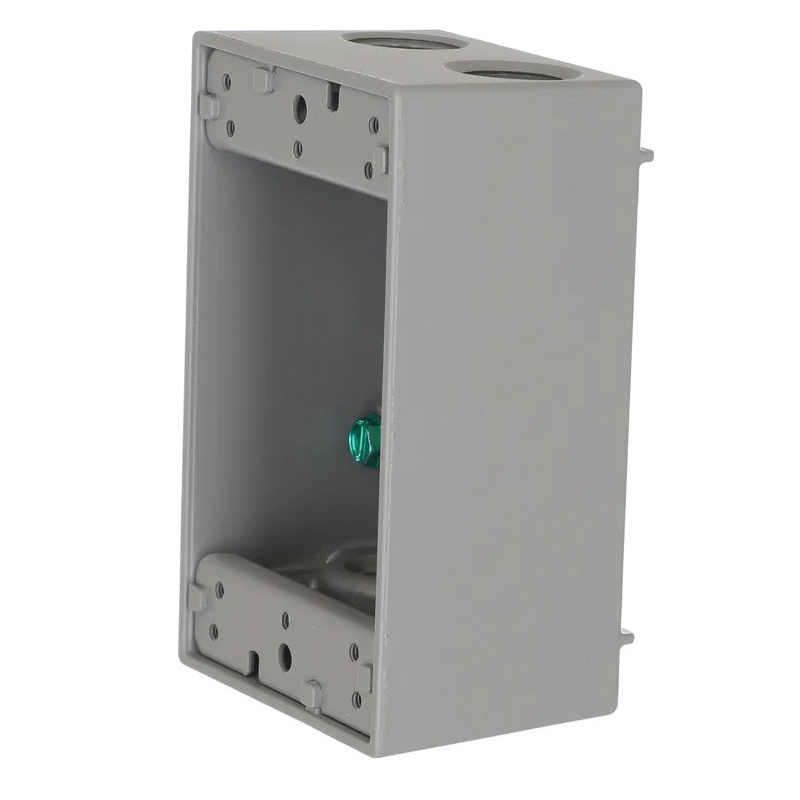

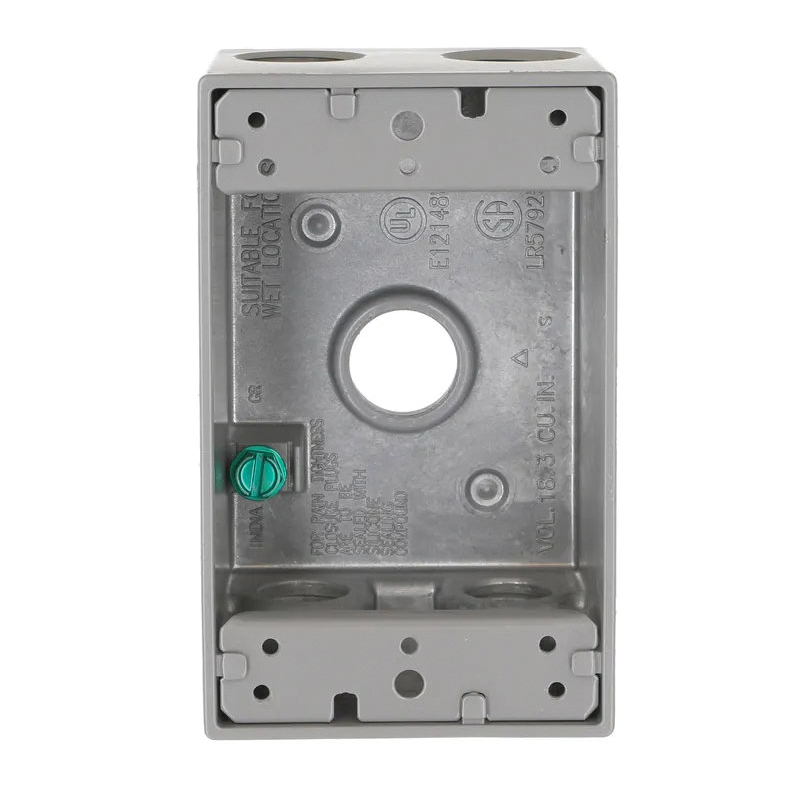

Bell Outdoor 5322-0 Weatherproof Box, 2-13/16 in W, 4-9/16 in D, 2-9/64 in H, 5-Knockout, Lug Mounting, NEMA 3R, Gray
Promo Price:
Weather-proof box, with lugs. Five 1/2 in threaded outlets. for use in branch circuit wiring in wet, damp or dry locations. May be used as a weather-proof junction box or as a housing for receptacles, switches and GFCIs. Die-cast aluminum construction. Reinforced connector outlets. powder-coat finish. Eight box mounting options with detachable lugs provided. Two closure plugs included. Ground screw installed. Internal threads and hubs comply with NEMA requirements. Hubs accept all threaded fittings and threaded conduit. Multi-lingual instructions. 2 in D x 4-1/2 in L x 2-3/4 in W. 18.3 cu-in capacity. UL listed. CSA 22.2 No. 18 NEMA 3R Rated.
| Color | : | Gray |
| Cubic Capacity | : | 18.3 cu-in |
| Dimensions | : | 4-9/16 in L x 2-13/16 in W x 2-9/64 in H |
| Finish | : | Powder-Coated |
| Hub Size | : | 1/2 in |
| Hub Type | : | Threaded |
| Includes | : | (2) 1/2 in Closure Plugs, Ground Screw, Gasket and Mounting Hardware |
| Material | : | Aluminum |
| Number of Gangs | : | 1 |
| Number of Outlets | : | 5 |
| Shape | : | Rectangular |
